License plate recognition cameras

Smart license plate recognition cameras can detect vehicles that on road, accurate shooting vehicle license photo that through high-speed preview area, photos can clearly reflect the characteristics of the vehicle license, through license plate recognition can recognize vehicle license plate information and vehicle image information (including Kanji characters, English letters, Arabic numerals and plate color), and sent license plate information to the specified server through the network promptly. With the fill light high performance equipment can work around the clock for 24 hours.

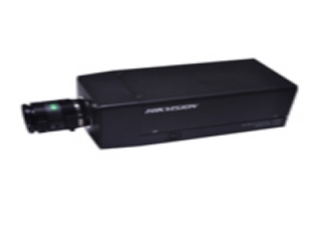

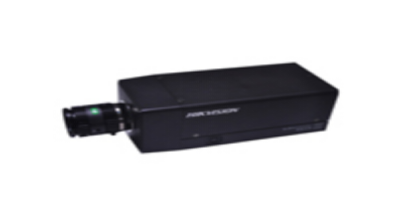

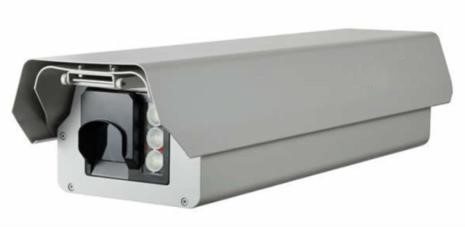

HD snapshot camera

Technical Parameters:

Ø 900 million pixel progressive scan CCD color camera HD Smart

Ø Maximum image size ≥3392 × 2008 pixels; video frame rate: You can set the video frame by frame rate, range of client software 1 ~ 25fps adjustable; Processor: TI sets using ARM, DSP integration of embedded control chips;

Ø H.264 supports H.264 stream output

Ø Output image in format of JPEG

Ø Multi-stream output: support tri-stream output, can output the main stream that can reach 3392 × 2520 @ 25fps 8Mbps, the secondary stream up to 1920 × 1080 @ 25fps 2Mbps;

Ø Minimum illumination: Color ≤0.03lx @ (F = 0.95, closed frame accumulation, 1 / 25s color mode)

Ø One interface 10M / 100M adaptive RJ45 interface

Ø 3-way trigger output (opt coupler isolation 2500VAC), as the fill light synchronous output control

Ø Support flash or strobe LED fill light synchronization

Ø Support local storage, support 64GB SD card hot swap

Ø Support for license plate recognition, radar, video trigger, body color recognition and access vehicle information capture, capture rate ≥99% (radar, coil trigger), ≥95% (video trigger) license plate recognition accuracy rate ≥95%

Ø Identification plate Category: Civil License Plate (except 5 smill vehicles), police license plates, 04 new-type military license plates, the 07 armed police license plate and new license plate 2002 style body color recognition accuracy rate ≥80% (depth and light); ≥70% (Body color); when the LED light fill light no body color recognition function an night, terminal access, the access terminal server support

Ø Working temperature: -40 ℃ ~ + 70 ℃

Ø Protection class IP54, with network lightning protection, surge and other functions

Ø Support GB / T 28181 protocol, Ministry of Public Security to provide test report

Flash Light

 Technical parameters:

² Germany strobe technology, Germany strobe tube;

² Super strobe capability, the fastest 50 times / sec;

² Dimming design, almost no damage to the driver's eye;

² Brightness, strobe speed adjustable;

² Long life, intermittent strobe up to 1 million times;

² Call back time is short, <1ms, energy saving and environmental protection;

² Synchronization TTL trigger 485, again trigger flash buttons;

² Tripod, PTZ, universal joints and other installation;

² Indoor / exterior seal design, rain, dust;

² Support single, dual trigger;

² Output Power: 80W / 160W;

² Operating voltage: AC220V / 50Hz;

² Working temperature: -20 ~ 60 ℃ (-4 ~ 140 ℉);

² Flash time: 1 / 200,000 to 1/2000 seconds;

² Maximum flash: 8 times / sec (8 files) to 50 times / sec (1st);

² Trigger modes: 485 signal, TTL, flash test;

² Relative humidity: 0 ~ 90% (non-condensing).

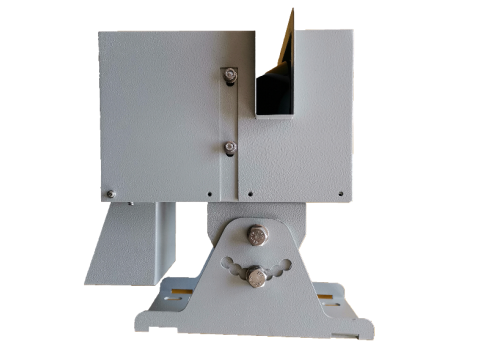

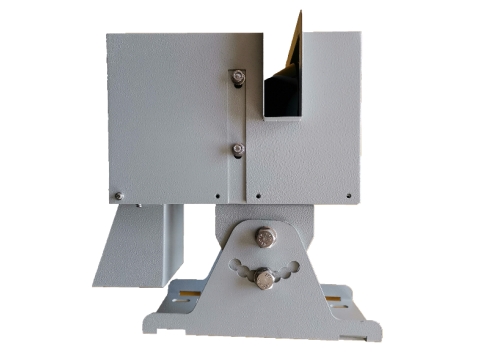

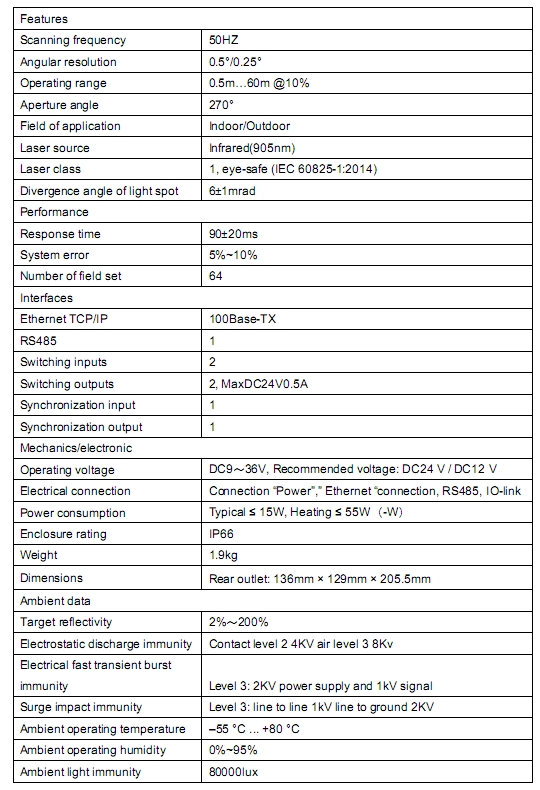

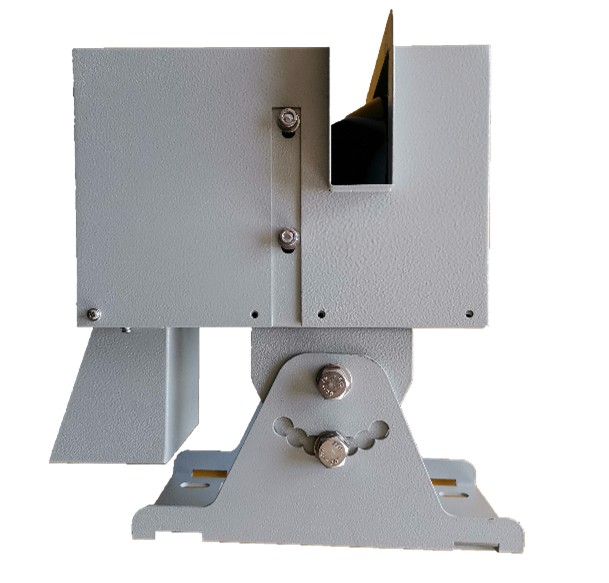

Vehicle Measurement Sensor Specification

The vehicle measurement Sensor is based on high-frequency laser scanning technology, which obtains real-time raw scanning data through the vehicle contour through non-contact means. The radar data processing unit processes the scanning data through algorithms to obtain the length, width, and height data of the vehicle contour.

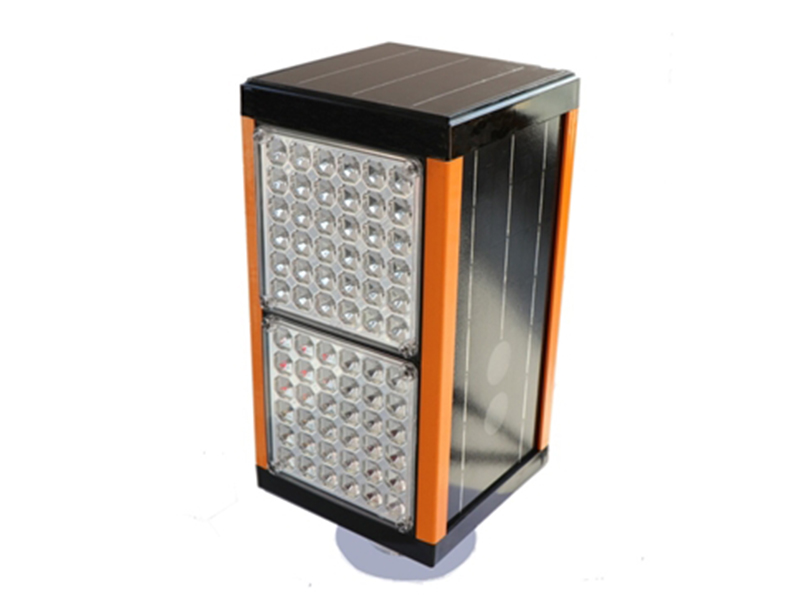

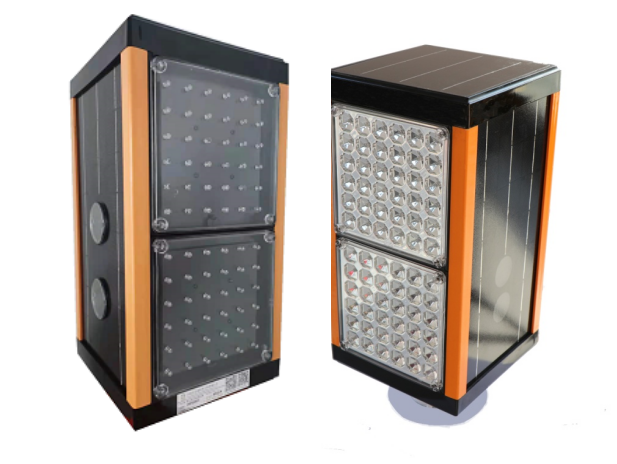

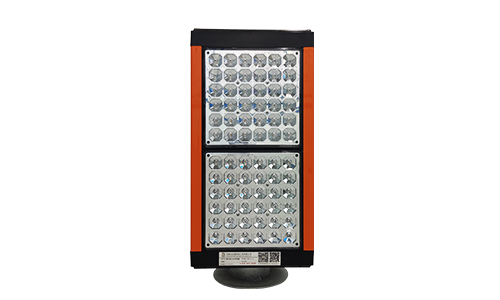

The guidance light is used in foggy, misty, cloudy, mountainous roads with low visibility, construction roads, bridges, ramps, intersections, curves, and dangerous roads with potential safety hazards. It can remind drivers to drive safely and warn them, and visually enhance the road contour.

Technical specification:

1. Housing Material: plastic steel sections and ABS engineering plastic with anti-aging treatment, galvanized or painted steel base, reflector cup on the back of the lamp bead (diffuse reflection or reflector cup optional)

2. Brightness: Eight levels of brightness control; Min: 500d/m2, Max:7000cd/m2.

3. Light emitting surface size: 156mm*156mm*4 sides

Product appearance dimensions: 201*205*390mm

Lamp structure: Back-to-back (double-side lamp panel)

4. LED Quantity: yellow 36*2 sides, red 36 *2 sides;

LED wavelength: yellow 590 ~ 595 nm, red 620~-630nm,

Single LED brightness: 4500 ~ 6000 mcd

5. Normal service life of LED: ≥ 110000

Power: ≤ 1W

6. Working mode: 24-hour continuous standby and operation, automatic power on and off at a scheduled time, remote control by the host, and can be linked with the visibility detector.

7. Flashing mode: supports road contour enhancement mode, active driving guidance mode, rear end collision prevention warning mode, accident or construction warning mode, etc.

8. Flashing frequency: Constant on, 15 times/minute, 30 times/minute, 60 times/minute, 120 times/minute, can be set.

9.   Visual range: ≥1000m

10. Vehicle distance guidance detector: radar detection.

Vehicle detection distance: > 20m

Driving active guidance system distance: 100m

11. Wireless frequency: 433 MHz, capable of connected with the IoT.

12. Working temperature: -35°C ~ 75°C Working humidity: ≤95%

13. Wind pressure resistance: ≥1.5KN/m2

14. IP Class: IP65

15. Control software: supports GIS online management (geographic information system positioning management, system map page displays real-time positioning), supports cloud remote control (mobile phone, computer and handheld device remote control).

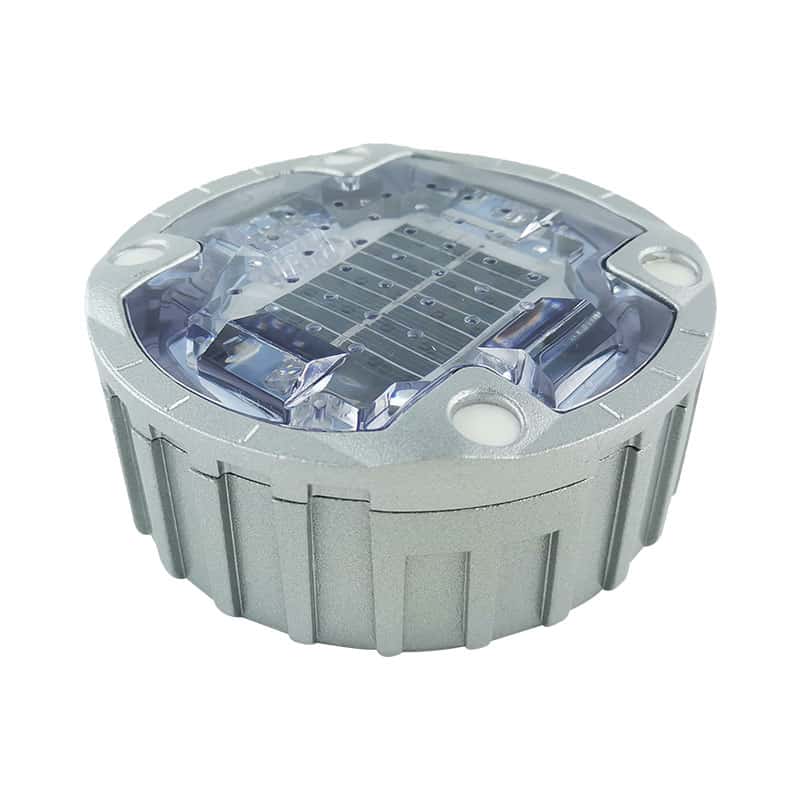

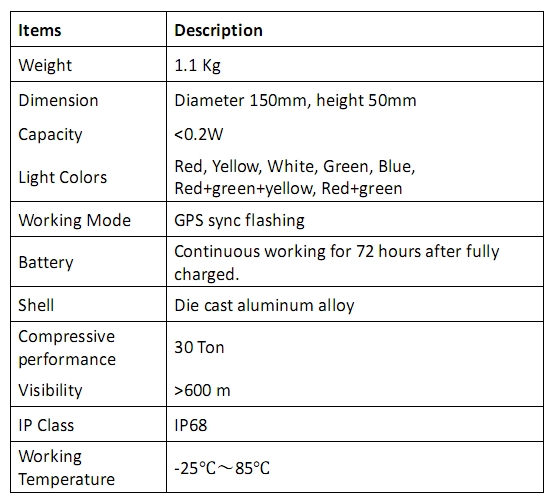

Road Stud

Road studs are often used to enhance road markings, especially at night or in poor visibility conditions. By reflecting light, road studs can improve road visibility and help drivers clearly see key road information such as lane dividing lines, stop lines, intersection signs, etc., thereby increasing driving safety.

The application Scenario:

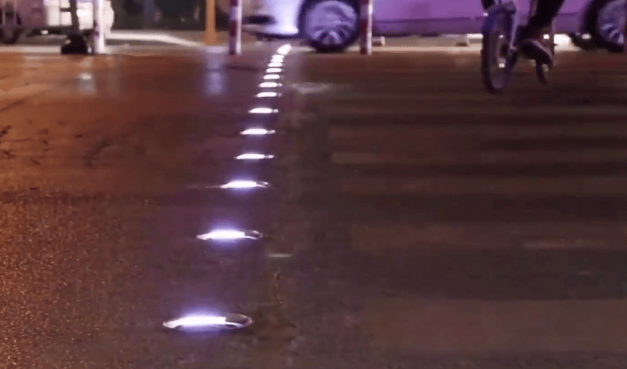

1. Crossroads or pedestrian zebra crossing waiting areas

The probability of traffic accidents occurring at intersections and pedestrian zebra crossing waiting areas is relatively high at night. Road studs serve to expand the nighttime road signs, enhancing nighttime traffic safety and visual comfort.

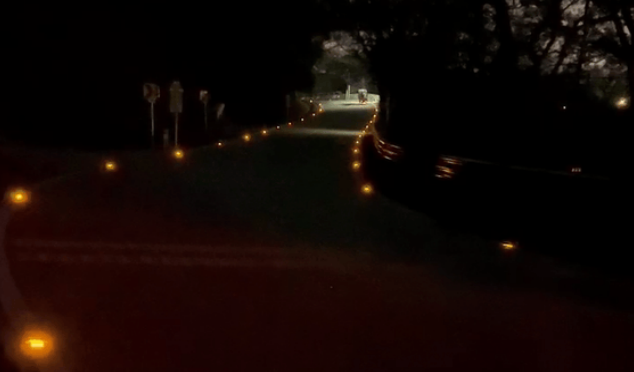

2. The edge of the curb or road dividing line on highways, sharp turns, etc.

The road curb and dividing line markings are located on one side of the road and are easily misjudged by the driver when driving at night, so road studs will be needed to assist the driver in making correct judgments.

Technical Parameters

Road studs, as an important part of road safety facilities, mainly have advantages in the following aspects:

1. Improving road safety

Warning function: Road studs can emit warning lights at night or in dim light conditions, forming an obvious warning effect, reminding drivers to pay attention to the road conditions ahead and effectively reducing the occurrence of traffic accidents.

Separation function: Installing road stud on lane dividers or edge lines can clearly demarcate different lanes or road boundaries, helping drivers accurately determine vehicle positions and avoid crossing the line or deviating from the road.

2. Strong durability

Excellent material: Road studs are made of high-strength, wear-resistant and corrosion-resistant materials, which can withstand the erosion of severe weather and traffic environment, ensuring long-term stable performance.

Firm installation: The road studs are tightly integrated with the road surface through a special installation method, and not easy to fall off or shift. They can maintain a stable warning effect even in harsh traffic conditions.

3. Low maintenance cost

Easy to replace: Road studs are modular in design, making them easy to install and replace. When a stud is damaged or failed, only a single stud needs to be replaced, no need to carry out large-scale repairs of the entire road, which reduces maintenance costs.

Long service life: Using high-quality materials and advanced production technology, road studs usually have a long service life, reducing the need for frequent replacement and further reducing maintenance costs.

4. Environmental protection and energy saving

Energy-saving effect: Solar road studs provide warning effects by reflecting the solar energy of vehicle lights, without consuming additional energy, which is in line with the environmental protection concept of energy conservation and emission reduction.

5. Strong adaptability

Multiple specifications: Road studs come in various sizes and models to meet the needs of different road types, traffic flow, and climate conditions.

‌Customized service: Providing customized services, we can design and produce road stud products that meet specific requirements according to the specific needs of customers.
