Road Safety Warning Sentinel

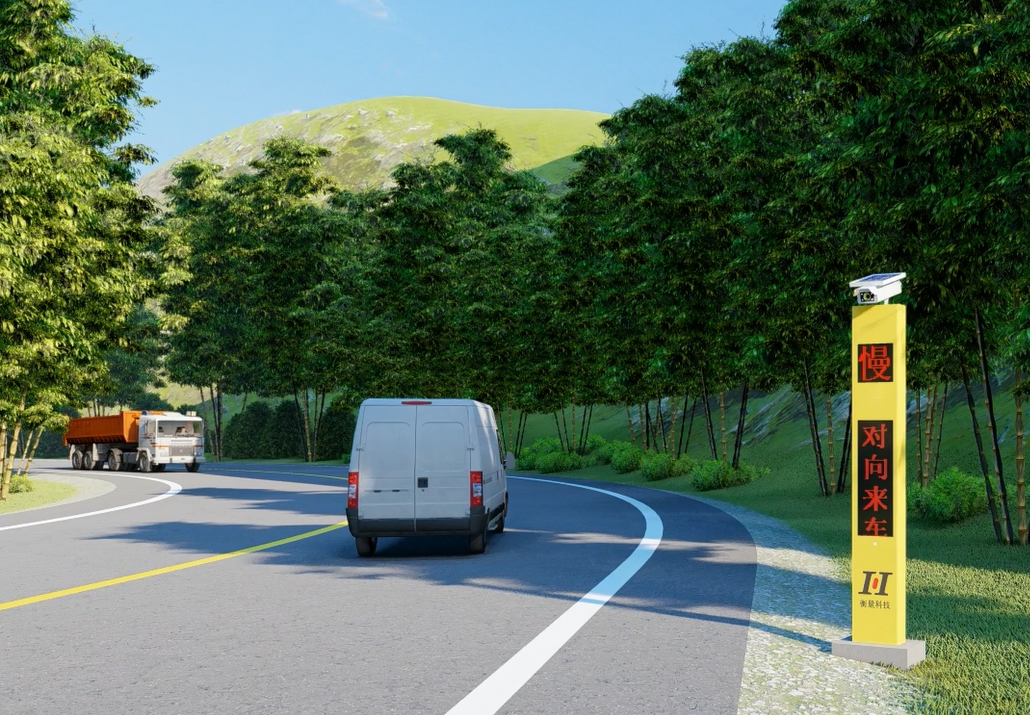

HLSWT is independently developed, designed and produced by Zhengzhou Hengliang Technology Co., Ltd. It is mainly used for vehicle warning on curves, T-shaped or Y-shaped level crossings, cross level crossings and other occasions. It uses narrow beam radar to accurately detect vehicles in the blind spot of vision;wireless communication technology for dual-machine interaction; sound and light alarms for eye-catching prompts; cloud data upload platform interconnection. The safety warning terminal has the characteristics of active detection, active reminders, sound and light multiple alarms, cloud interconnection, etc., which can effectively reduce the occurrence of traffic accidents and perceive the road traffic status in real time.
System Parameters
ModelSWT(I/C)
Supply voltageAC 220V 50Hz
Power consumption< 20W
Radar frequency80GHz
Radar modulation methodFMCW
Radar monitoring distance1.2~300m
Max number of covered lanes4 lanes
CommunicationWireless dual-machine communication, cloud 4G data communication, local RJ45 network communication
Wireless frequency bandDefault frequency 470MHz
Transmit power20dBm@Max
Wireless transmission distance3500m@Max
Alarm methodSound and light alarm, speed display, oncoming vehicle reminder
Working environmentTemperature range - 20 ℃ ~ 80 ℃ , relative humidity range 0 ~ 95%, IP65 outdoor protection
AppearanceMetal anti-rust treatment, eye-catching color anti-collision
Dimensions2820*420*320mm
System Features

²  Integrated structural design, beautiful appearance, long service life, easy installation and maintenance.

²  A variety of power supply methods to meet the needs of different scenarios.

²  Cloud interconnection supports remote display content modification, supports remote OTA, and provides data support for intermodulation.

²  The detection accuracy is high and the detection distance is long, up to 300 meters. Early warning reserves sufficient reaction time and reduces traffic risks.

²  Wireless dual-machine communication, low transmission delay and high perception sensitivity;

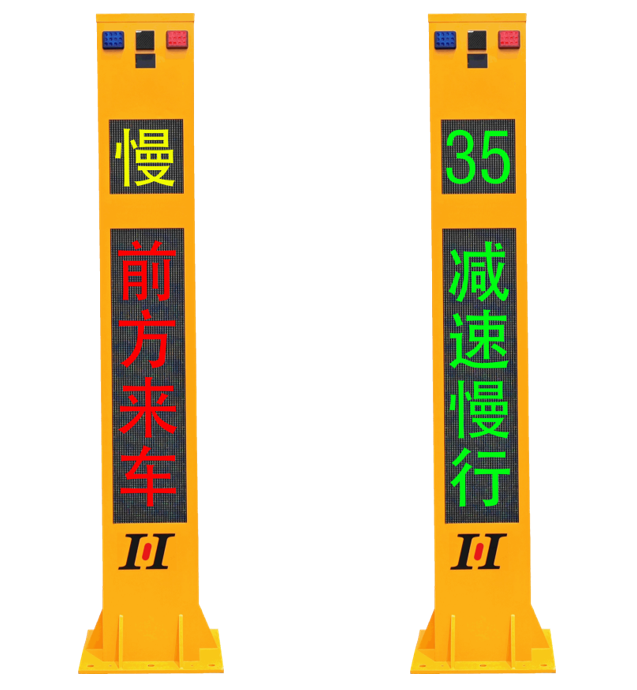

²  Sound and light stereo warning, 320mm*1600mm dual-color large screen display, tweeter, strong warning effect.

²  Supports vehicle speed detection, speeding judgment, and uses different color fonts for speed prompts.
