Vehicle Identification System Solution

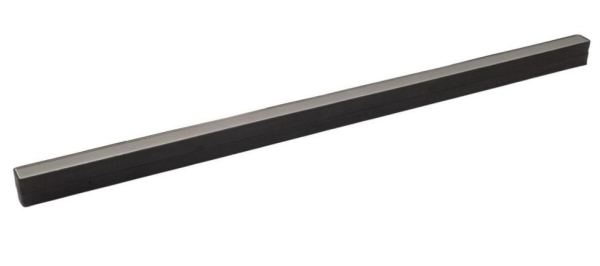

The Model Identification System automatically identifies the number of axles and tires of passing vehicles through axle identification sensors installed under the road. The equipment is designed to accompany the implementation of technology overload control and monitoring systems at the source of cargo loading. The system can accurately detect the number of axles, number of wheels and axle types of passing vehicles, so as to accurately identify the vehicle type; it can be used alone or integrated with other systems such as weighing systems and automatic license plate recognition systems to form a complete vehicle automatic Detection Systems.
System Parameters
Can be used alone or integrated with other systems such as weighing systems, automatic license plate recognition systems, etc.
Single shaft rated load40T
Maximum overload capacity of single axis150%
speed range0.5~105km/h
Minimum detection width150mm
Insulation resistance≥500 GΩ
Working environment-45℃~80℃,0~95%
Confidence≥96%
System Features

The system can accurately detect the number of axles, number of wheels and axle types of passing vehicles, so as to accurately identify the vehicle type; it can be used alone or integrated with other systems such as weighing systems and automatic license plate recognition systems to form a complete vehicle automatic Detection Systems.

1. Using digital signal processing technology, the probability of misjudgment is very small.

2. A variety of anti-interference measures are adopted, and the system has good stability.

3. Recognition of axle number: the number of axles can be recognized, and the vehicle can be automatically terminated and separated.

4. Tire model identification: can identify single tire and double tire, and output vehicle signal
